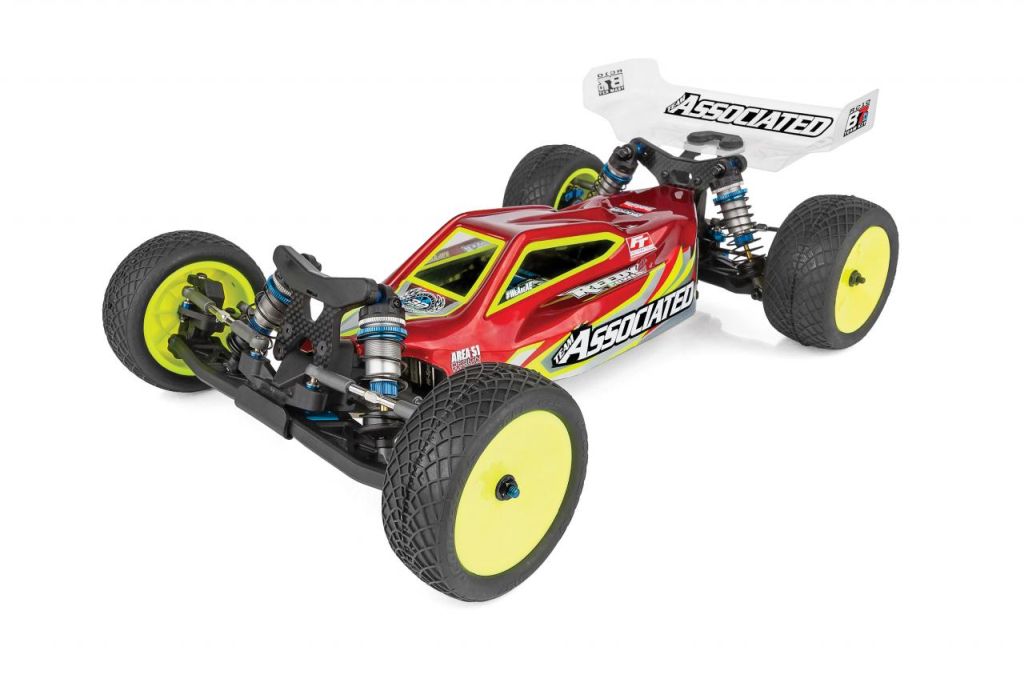

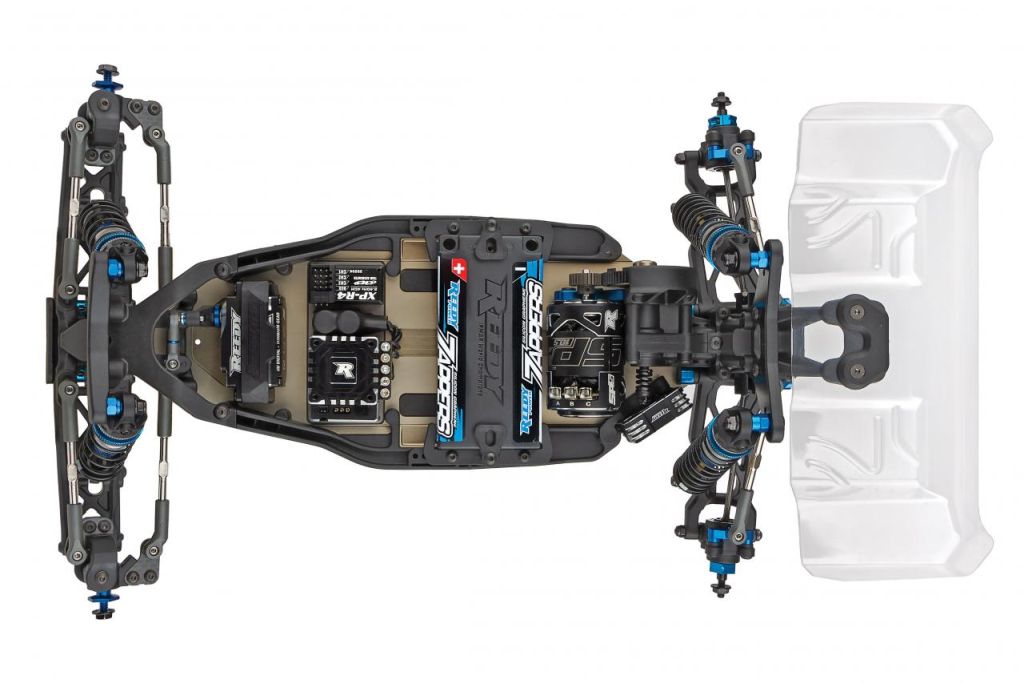

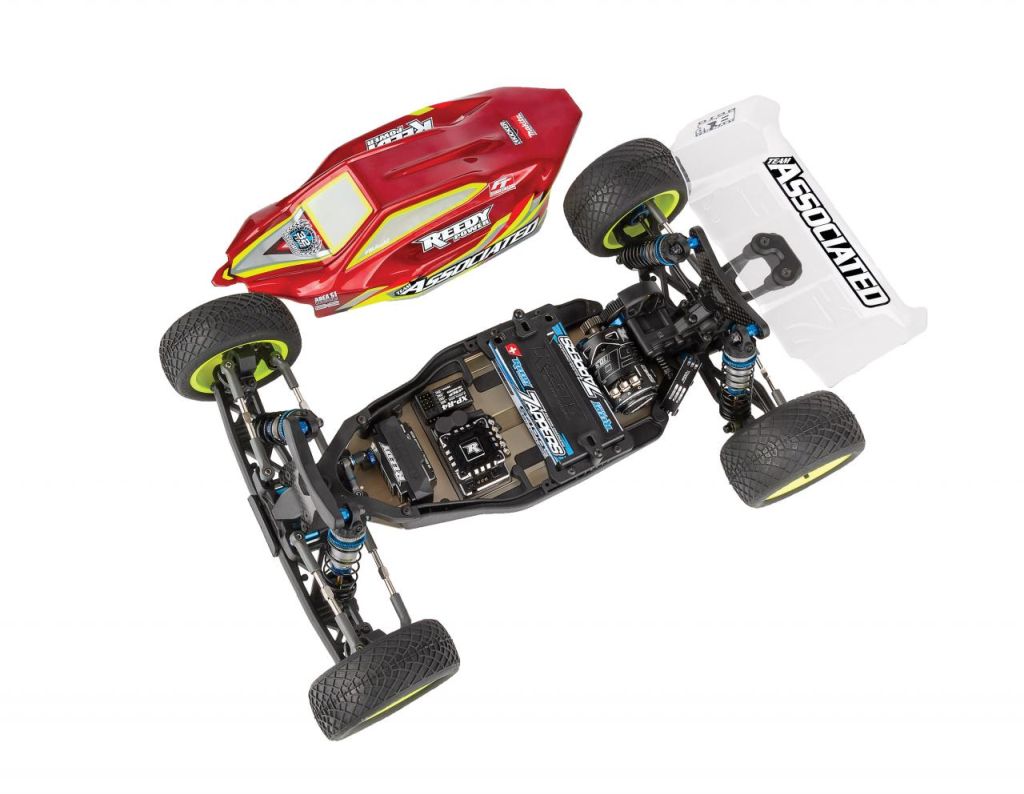

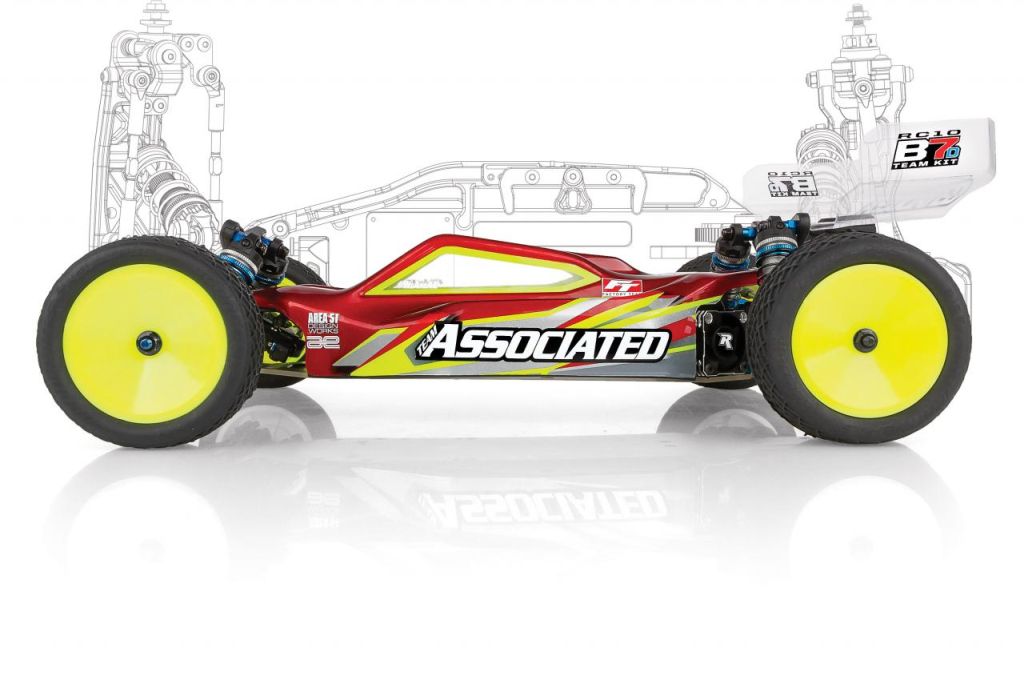

ASSOCIATED RC10B7D Team Kit

ASC90042

RC10B7D Team Kit

Team Associated has been at the leading edge of 1:10 scale 2WD off road for the last 40 years starting with the original RC10 and are proud to introduce this next generation to the world--the RC10B7D. 40 years has seen a lot of development and changes, with each generation being a step forward from the last. The RC10B7D is no exception, boasting new long-arm suspension geometry, weight-centralized electronics layout, KPI adjustable steering blocks, and increased tunability throughout the whole chassis. These innovations have increased the potential for grip and corner speed, which leads to faster lap times and an overall easier-to-drive feel than the previous generation.The RC10B7D is the recommended starting kit for those who plan to race on dirt, clay, and some low-grip AstroTurf tracks. This kit comes equipped with a ball differential and an optimized setup which includes softer springs and lower pack pistons.

• 5-gear laydown transmission with low profile motor mount
• Long-arm suspension geometry
• KPI adjustable steering and caster blocks. Three options included.
• Vertical front outer ballstud
• Height adjustable aluminum front bulkhead
• Standard and HRC (High Roll Center) rear hubs included
• Highly adjustable battery holder with thumb tabs
• 7075-T6 aluminum chassis with increased departure angle and optional weight plate pockets
• HD 69mm CVA bones and differential outdrives
• Lightweight molded servo mount
• One-piece rear wing mount
• New 7-inch rear wing and 2.5-inch front wing
• Low-profile body
• Shock tower covers front and rear
• 3.5mm turnbuckles and ballcups

Required to Complete:

• 1:10 scale 540-size electric RC car motor
• 1:10 scale radio control electronic speed control
• 7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
• Battery charger (compatible with chosen battery)
• 2 channel surface transmitter and 2 channel receiver
• Steering servo
• Lexan specific spray paint for body
• 1:10 scale off-road wheels and tires
• Other helpful items: Silicone Shock Fluid, Silicone Diff Fluid, Body Scissors, Reamer, Wrench Set, Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers
